FL-2 DC Current Shunt Series 10A
The FL-2 DC Current Shunt Series 10A is designed for accurate DC current measurement at 10-amp loads, offering standard ±0.1% precision and optional upgrades for higher accuracy. Utilizing a low-resistance manganin element and robust copper terminals, it ensures low power dissipation and excellent temperature stability. With a compact bolt-on design, it fits seamlessly into electric vehicles, solar energy systems, BMS modules, UPS units, and various industrial power monitoring environments.
| Parameter | Specification |
|---|---|
| Model | FL-2 DC Current Shunt Series 10A |
| Rated Current | 10A |
| Voltage Drop | 75mV (customizable) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 7.5mΩ (based on 75mV/10A) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |

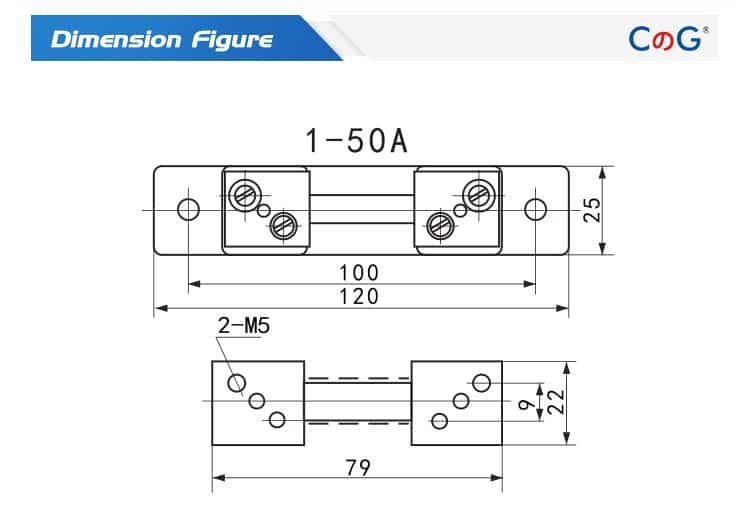

| Mounting Type | Bolt-on / Panel Mount |
| Material | Manganin resistive element + copper ends |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2 DC Current Shunt Series, click here and discover the right solution for your application.
