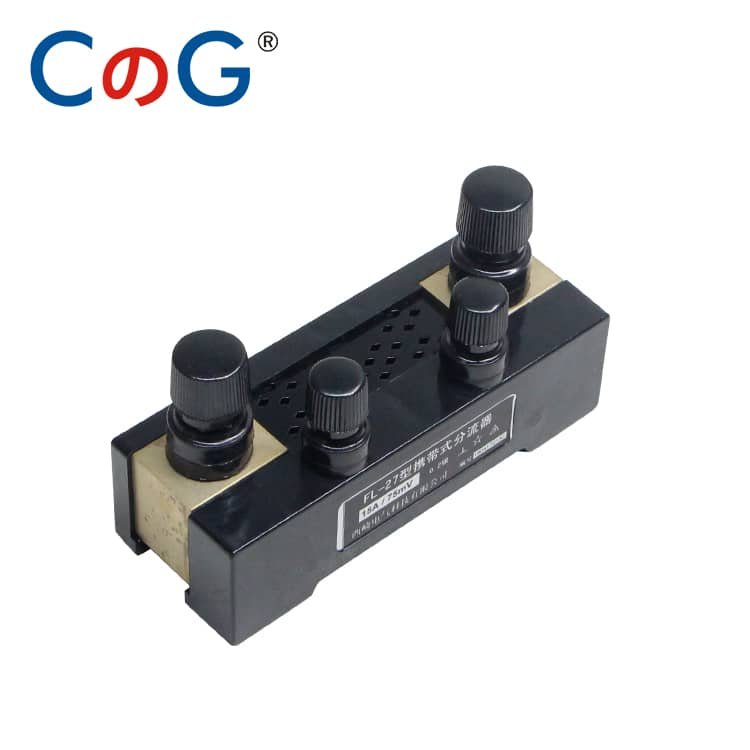

FL-27 High Accuracy 15A 0.2%
The FL-27 High Accuracy 15A 0.2% shunt is a precision current sensor engineered for DC metering and test environments that demand high accuracy and long-term stability. With a 75mV output at 15A and a resistance of 5mΩ, it provides precise current-to-voltage conversion with minimal drift.
This model is ideal for use in energy meters, calibration benches, laboratory instruments, and other systems requiring ±0.2% tolerance. Constructed with a manganin resistive alloy, it maintains linearity and thermal stability across temperature variations.
Its screw-mount design ensures secure electrical contact and simple installation in permanent or semi-permanent test setups.
| Parameter | Specification |
|---|---|
| Model | FL-27 High Accuracy 15A 0.2% |
| Rated Current | 15A |
| Voltage Drop | 75mV |
| Resistance Value | 5mΩ |
| Accuracy Class | ±0.2% |
| Output Type | Passive voltage drop (analog) |
| Material | Manganin resistive core + copper terminals |
| Mounting | Screw mount / Panel mount |
| Application | Metering, calibration, lab test platforms |
| Operating Temp | -20°C to +60°C (calibrated range) |
| Compliance | ISO9001, CE |
