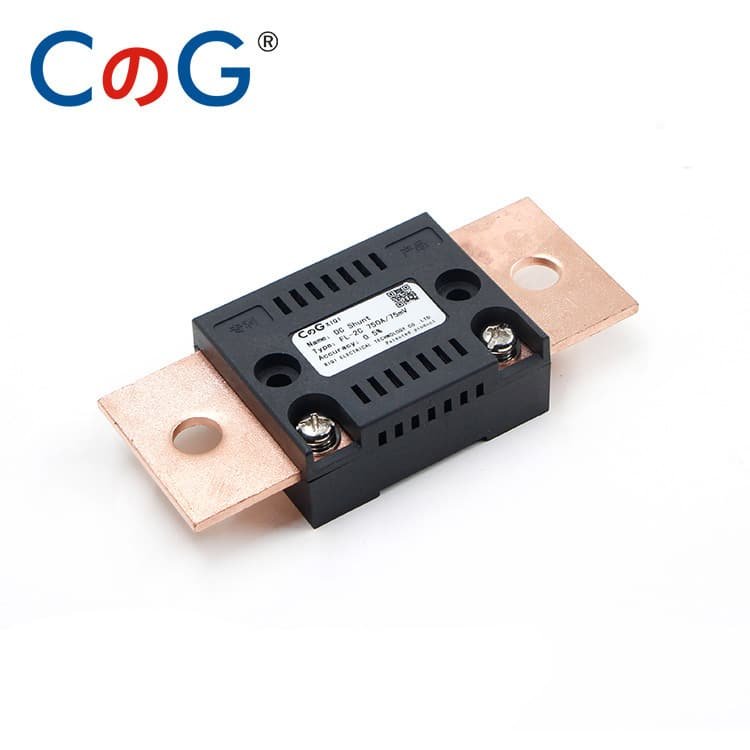

FL-2C Patent Shunt 750A
The FL-2C Patent Shunt 750A is engineered for high-current DC applications such as EV battery packs, solar energy systems, and UPS backup systems. It offers a precise 75mV output with ±0.1% accuracy, ensuring consistent measurement performance under varying loads.

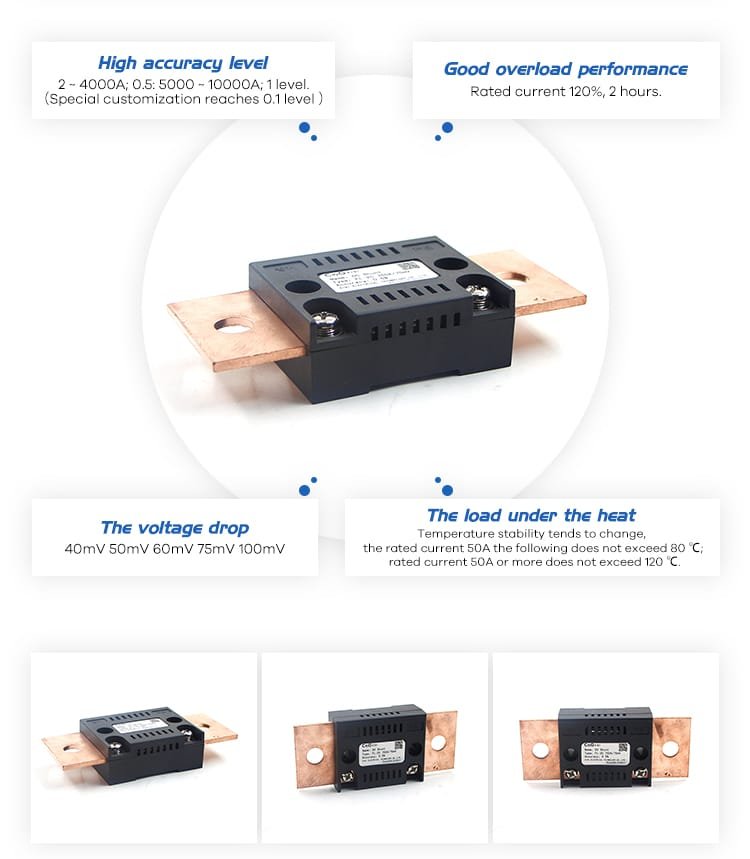

Made with manganin alloy and brass terminals, this model is designed for thermal stability, long-term durability, and minimal resistance drift. Its compact patented structure makes it easy to integrate, while supporting custom voltage drop, resistance values, and terminal layout. Capable of handling 120% overload for 2 hours, it meets industrial-grade reliability standards.
| Parameter | Specification |
|---|---|
| Model | FL-2C Patent Shunt 750A |
| Rated Current | 750A |
| Voltage Drop | 75mV |
| Resistance Value | 0.1mΩ |
| Accuracy Class | ±0.1% |
| Material | Manganin core, brass terminals |
| Overload Capacity | 120% rated current for 2 hours |
| Mounting Type | Bolt-on/panel mount |
| Temperature Range | -40°C to +85°C |
| Customization | Resistance, voltage, layout |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2C Patent, click here and discover the right solution for your application.
