FL-2D Din Shunts Series 15000A
The FL-2D Din Shunts Series 15000A is designed for ultra-high current DC measurement up to 15kA, built to the DIN 43703 German Standard. Engineered for extreme power environments, it ensures ±0.1% standard accuracy with options for ±0.05% or ±0.01% precision, delivering reliable and stable performance over time.

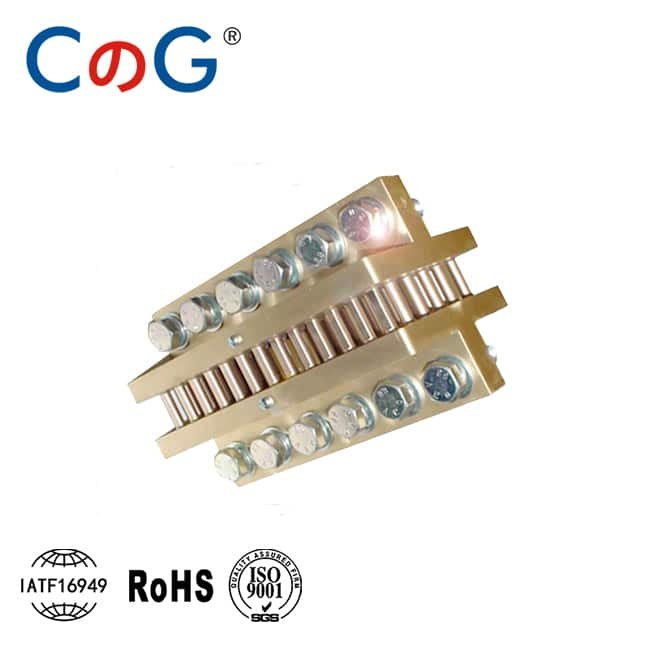

With a resistance as low as 0.005mΩ (75mV at 15000A), this model reduces power loss and thermal rise while maintaining output integrity. Ideal for large-scale substations, marine propulsion systems, energy storage farms, and industrial grids, the shunt features a reinforced manganin core and heavy-duty copper busbars, supporting stable operation under extreme current loads.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 15000A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 15000A |
| Voltage Drop | 75mV (optional: 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.005mΩ (based on 75mV/15000A) |
| Mounting Type | Bolt-on / Panel-mount (DIN 43703 format) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive core + heavy copper busbars |
| Compliance | ISO9001, CE, RoHS |
