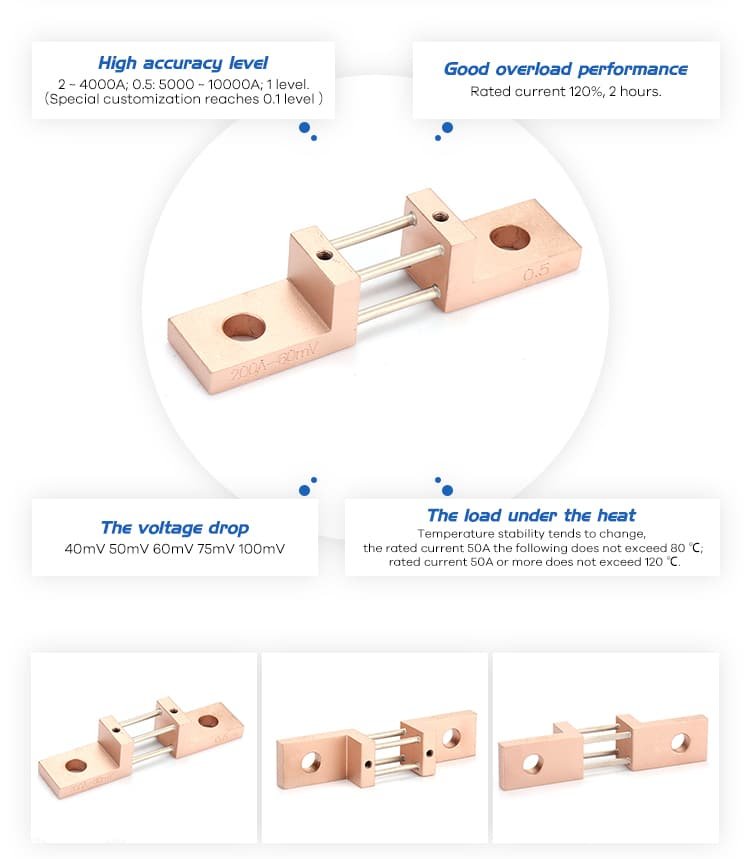

FL-2D Din Shunts Series 200A
The FL-2D Din Shunts Series 200A is a high-accuracy DC shunt built to the DIN 43703 German Standard, engineered for precise current measurement at 200A. With ±0.1% standard accuracy and optional ±0.05% or ±0.01% versions, it delivers stable performance for high-load DC applications.
Featuring a low 0.375mΩ resistance, this shunt minimizes energy loss while maintaining excellent thermal stability. Its compact DIN-compatible form factor allows fast installation into EV battery packs, solar systems, UPS modules, industrial control panels, and other high-current monitoring setups where accuracy and space-saving design are critical.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 200A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 200A |
| Voltage Drop | 75mV (customizable: 50mV or 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.375mΩ (based on 75mV/200A) |
| Mounting Type | Panel-mount / Bolt-on (DIN form factor) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin element + copper busbars |
| Compliance | ISO9001, CE, RoHS |
To explore more models from the FL-2D Din Shunt Series, click here and discover the right solution for your application.
