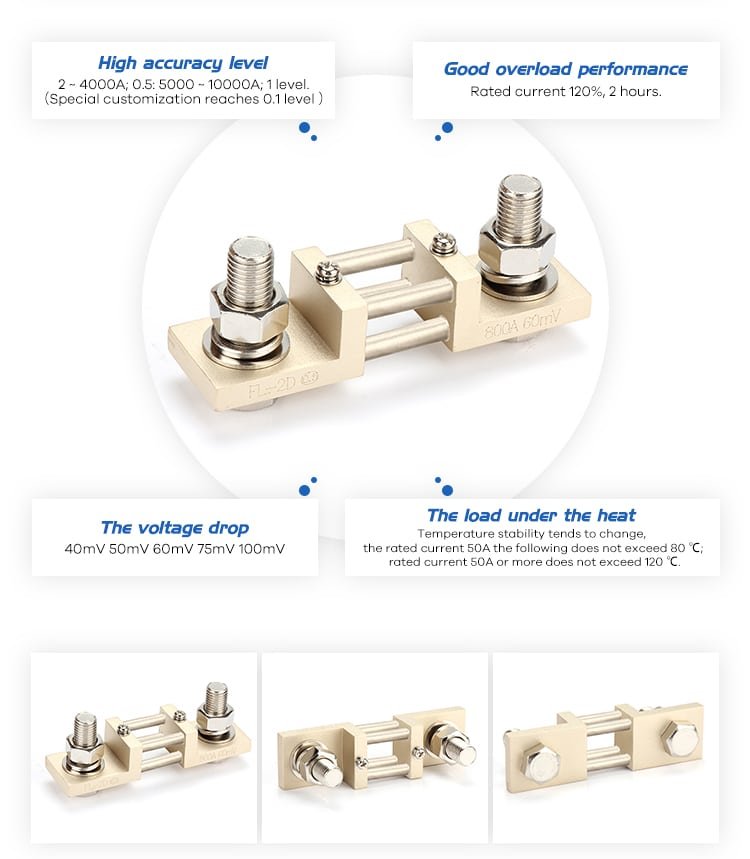

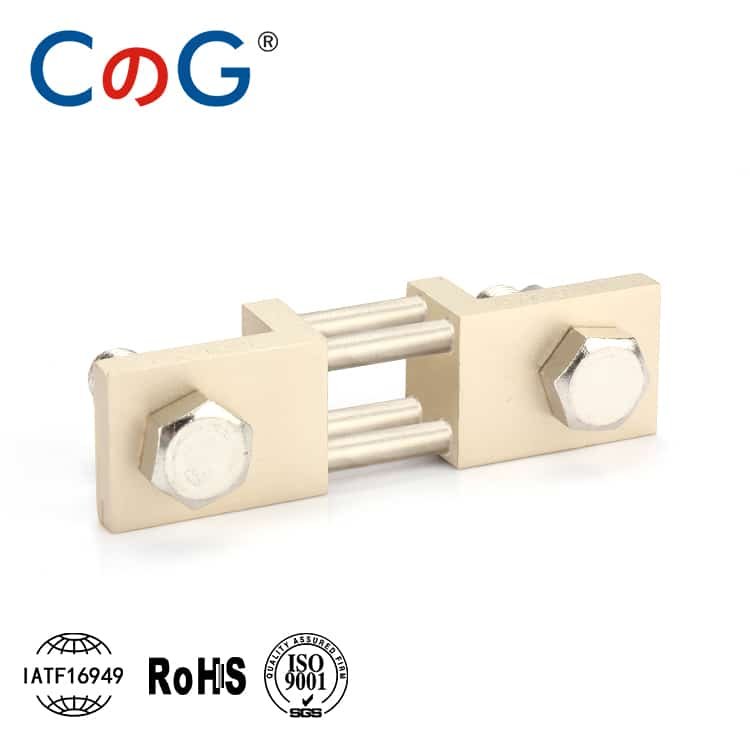

FL-2D Din Shunts Series 800A
The FL-2D Din Shunts Series 800A is engineered according to the DIN 43703 German Standard, making it ideal for accurate high-current DC measurement in demanding electrical environments. With a standard accuracy of ±0.1% and optional precision upgrades to ±0.05% or ±0.01%, it meets the needs of critical power monitoring applications.
This model features a resistance value of 0.09375mΩ (75mV at 800A), ensuring low power dissipation and excellent thermal stability. Its DIN-compliant design allows for easy integration into electric vehicles, battery management systems, solar energy platforms, UPS units, and industrial control systems. The combination of a manganin resistive core and robust copper terminals guarantees long-lasting, stable performance.
| Parameter | Specification |
|---|---|
| Model | FL-2D Din Shunts Series 800A |
| Standard | DIN 43703 (German Mounting Format) |
| Rated Current | 800A |
| Voltage Drop | 75mV (optional: 50mV / 100mV) |
| Accuracy Tolerance | ±0.1% (optional ±0.05% / ±0.01%) |
| Resistance Value | 0.09375mΩ (based on 75mV/800A) |
| Mounting Type | Panel-mount / Bolt-on (DIN 43703 compliant) |
| Temperature Coefficient | ≤ 50 ppm/°C |
| Operating Temperature | -40°C to +85°C |
| Material | Manganin resistive alloy + copper terminals |
| Compliance | ISO9001, CE, RoHS |
