FL-39 DC Shunts Series 1500A
The FL-39 DC Shunts Series 1500A is a robust high-current shunt designed for electric vehicles, energy storage systems, and UPS infrastructure. Featuring a standard 75mV output and ±0.5% accuracy, it ensures precise and reliable current measurement in demanding environments.

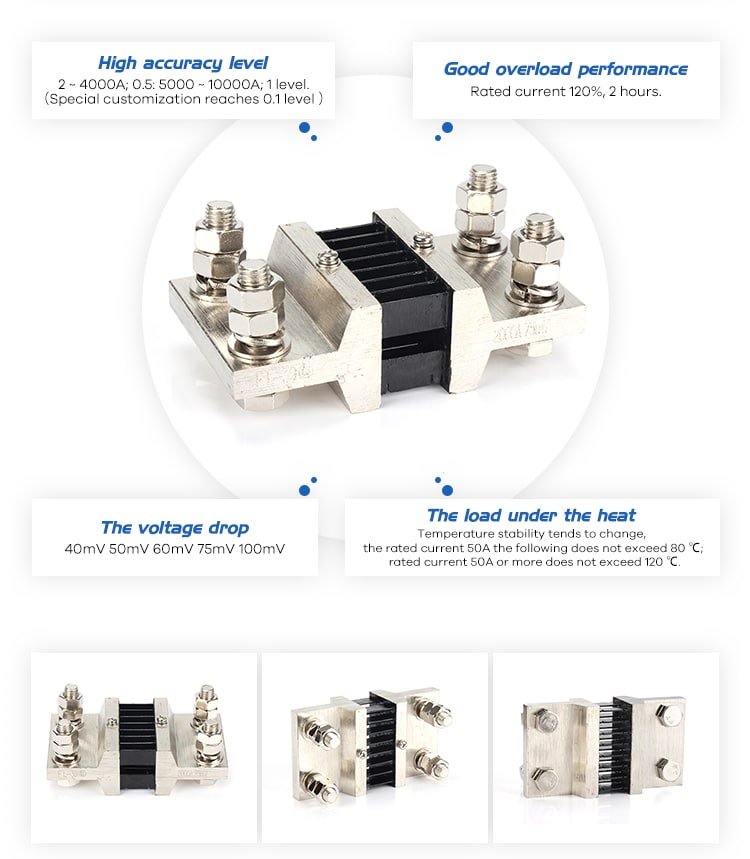

Constructed from manganin alloy with nickel-plated terminals, the 1500A model offers strong thermal stability and minimal resistance drift. It handles 120% overload for 2 hours, and its design supports custom output voltage (60/100/150mV), resistance, and terminal layout.
| Parameter | Specification |
|---|---|
| Model | FL-39 DC Shunts Series 1500A |
| Rated Current | 1500A |
| Voltage Drop | 75mV (customizable to 60/100/150mV) |
| Accuracy | ±0.5% (optional ±0.1%) |
| Material | Manganin + nickel-plated copper |
| Mounting | Screw/panel mount |
| Overload Capacity | 120% rated current for 2 hours |
| Applications | EVs, UPS, solar power, industrial power units |
| Customization | Resistance, voltage drop, layout |
| Certifications | ISO9001, CE, RoHS |
