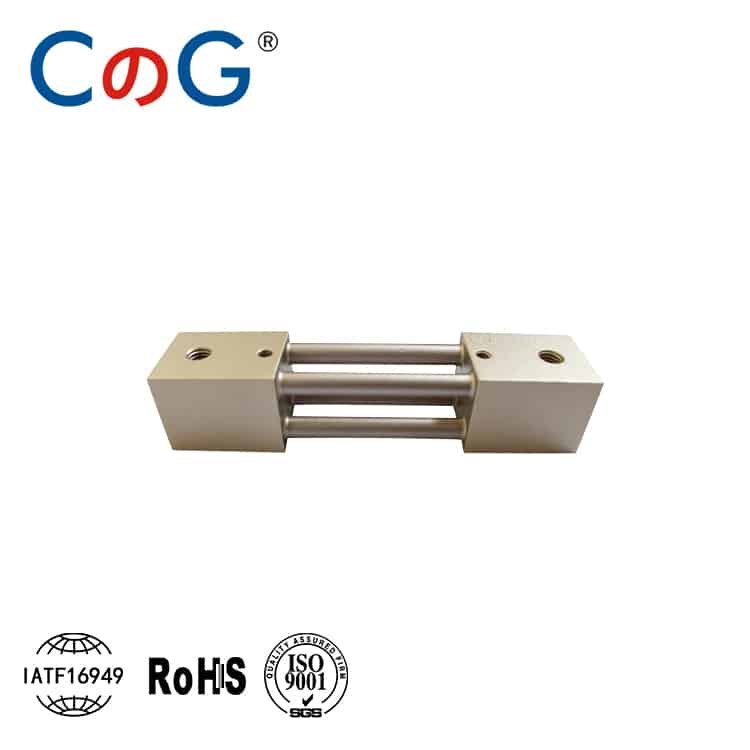

New Energy DC Shunt CBFL-27
The New Energy DC Shunt CBFL-27 is designed for precision current sensing in advanced EV powertrains, battery energy storage systems (ESS), and high-speed DC charging stations. With a standard 75mV output and ±0.5% accuracy, this shunt balances precision and thermal stability in compact spaces.

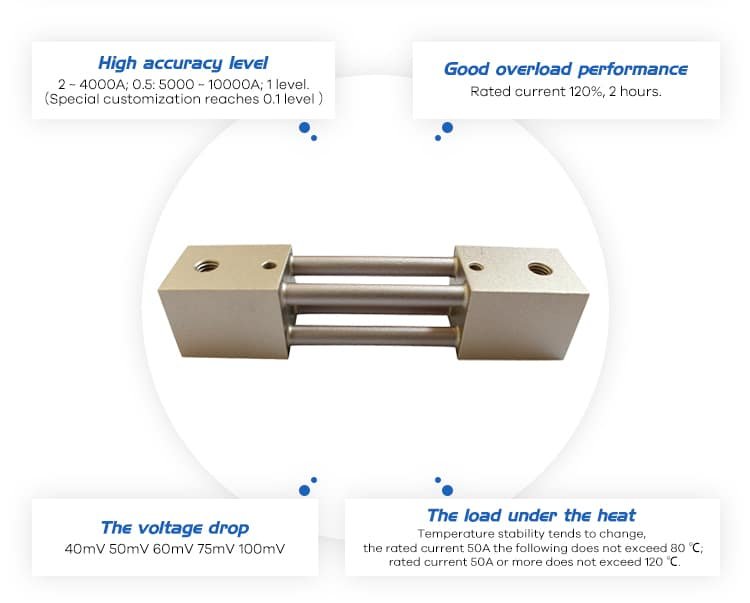

It features a brass terminal base and dual manganin resistive bars, delivering low temperature drift and stable performance across a wide current range. CBFL-27 is built for harsh environments and supports 120% overload for 2 hours without compromising output stability.
Whether for inline battery monitoring or system-level integration, the CBFL-27 supports full customization in terms of voltage drop, terminal configuration, and rated current, making it an excellent choice for OEM energy and mobility platforms.
| Parameter | Specification |
|---|---|
| Model | New Energy DC Shunt CBFL-27 |
| Rated Current | Customizable (1A to 10000A) |
| Voltage Drop | 75mV (optional: 60mV / 100mV / 200mV) |
| Accuracy | ±0.5% |
| Resistive Element | Manganin alloy |
| Terminal Material | Brass |
| Overload Capacity | 120% rated current for 2 hours |
| Mounting | Bolt-on |
| Application | EV, ESS, DC charging infrastructure |
| Customization | Current rating, voltage drop, layout, terminals |
| Compliance | ISO9001, CE |

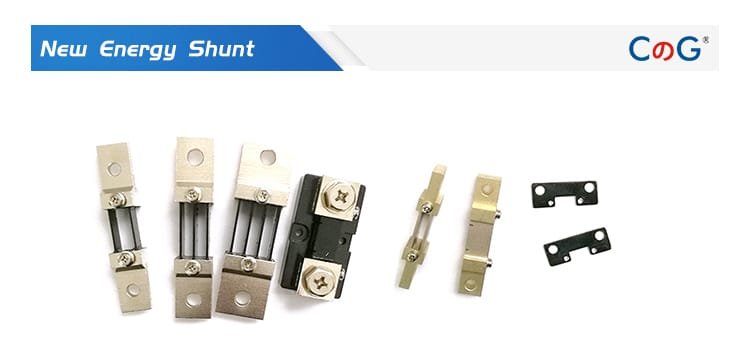

To explore more models from the New Energy Shunt, click here and discover the right solution for your application.
